Tie Bar

Name: Tie Bar
SKU: CF-TB-01
Availability: InStock

UK mainland delivery: £50.00 per order. Mixed baskets use the highest delivery band.

High-tensile, continuously threaded formwork tie bar in 15mm and 20mm diameters with lengths from 1 to 6 metres.

Size

Clear

SKU: CF-TB-01

Category: Accessories, Concrete Forms

Description

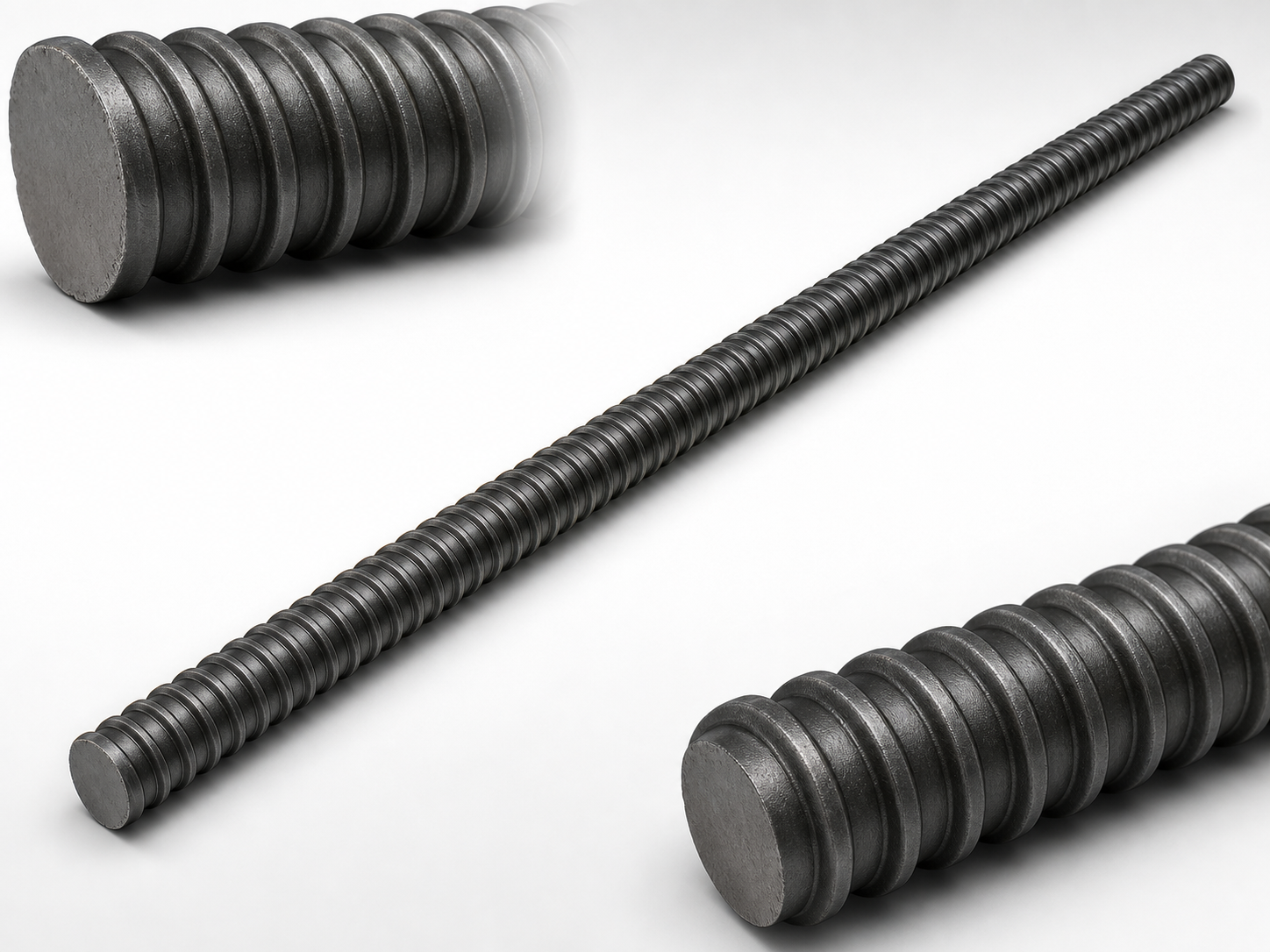

A coarse right-hand thread runs along the full length of this high-tensile alloy steel bar, making the system quick to assemble and easier to clear than a conventional fine thread. Standard lengths cover a wide range of shuttering depths, with a cutting service available for shorter requirements.

Load information

15mm bar: 90kN stated safe working load and 180kN stated failure load
20mm bar: 160kN stated safe working load and 320kN stated failure load
Available in standard lengths from 1 to 6 metres
Use only with correctly matched connectors, plates and nuts

Formwork design and tie spacing must be verified by a competent person. Do not treat component capacity as a complete shuttering-system design.

Additional information

Size	1m × 15mm, 1.2m × 15mm, 1.5m × 15mm, 2m × 15mm, 3m × 15mm, 6m × 15mm, 1m × 20mm, 1.2m × 20mm, 1.5m × 20mm, 2m × 20mm, 3m × 20mm, 6m × 20mm
